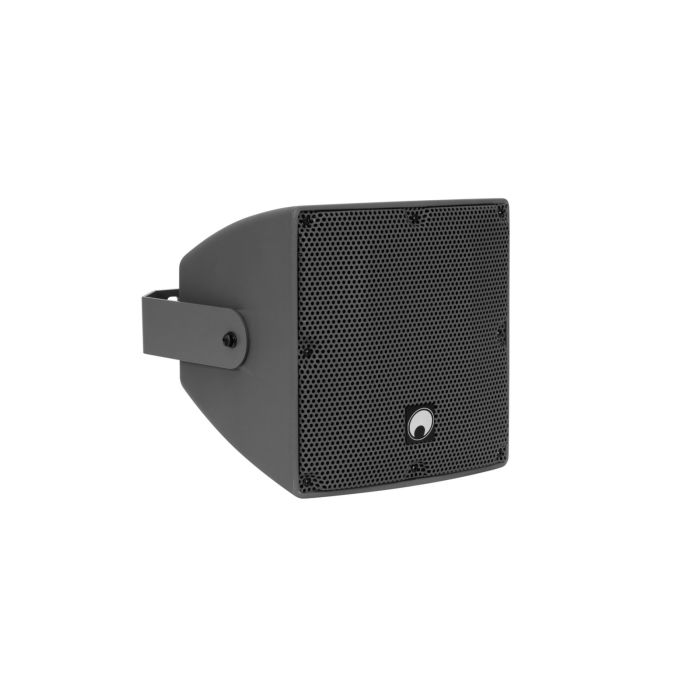

OMNITRONIC ODX-208TM Installation Speaker 100V dark grey

OMNITRONIC ODX-208TM Installation Speaker 100V dark grey

Features

Weather-proof 8" wall speaker with top-quality sound, incl. mount, 150 W RMS

100 V high-performance speaker system for universal open-air applications
Well-balanced musical sound
2-way coaxial system with 20 cm woofer (8") and 2.5 cm dome tweeter (1")
100 V transformer with 3 power taps (37.5 W, 75 W, 150 W)
Power selector switch with 8 ohms operating position
Screw terminals for parallel connection
With Mounting bracket
Suitable for outdoor use

Package contents

1 x Top, 1 x Mounting bracket, 1 x User manual, 6 x Screw, 1 x Safety eyelet, 1 x Lid, 2 x Washers

Technical specifications
IP classification: IP56
Rated power: 150 W RMS
Program power: 300 W
Frequency range: 80 - 18000 Hz
Sensitivity: 96 dB (1W/1m)
Max. SPL: 118 dB
Dispersion angle: 90° x 90°
Crossover frequency: 2300 Hz
Impedance: 8 ohms; Public address systems 100V
Attachment system: Mounting bracket
Power tapping: 37,5W; 75W; 150W RMS via Selector switch switchable
Connections: Input: speaker via screw terminal
Speaker: 1 x woofer (8") approx. 20 cm
1 x Calottes highs (1") approx. 2,5 cm
Type of speaker: On-ceiling/on-wall speaker
Color: Grey
Dimensions: Width: 30 cm
Depth: 28 cm
Height: 30 cm
Weight: 10,90 kg
