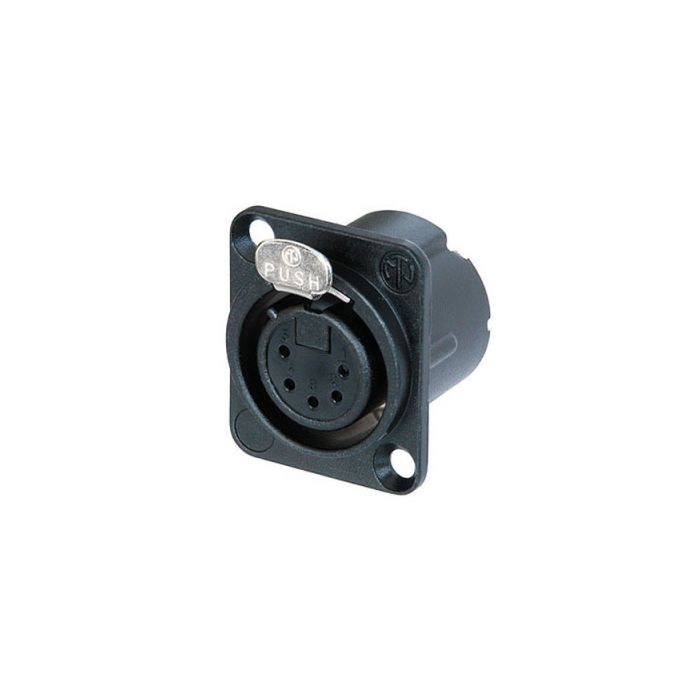

Neutrik NC5FDLXBAG XLR 5polig Chassis Female Silver contacts, Black metal housing
€ 13,31
€ 11,00
?
SKU
NC5FDLXBAG
Neutrik NC5FDLXBAG XLR 5polig Chassis Female Silver contacts, Black metal housing
Neutrik NC5FDLXBAG XLR 5polig Chassis Female Silver contacts, Black metal housing
• All metal housing offers best overall RF protection and electromagnetic shielding
• Duplex ground contact for excellent contact integrity between chassis and cable connector
• Female contact incorporates a solder barrier to prevent solder running into the contact mating area
• Larger solder contacts for easier termination
• Duplex ground contact for excellent contact integrity between chassis and cable connector
• Female contact incorporates a solder barrier to prevent solder running into the contact mating area
• Larger solder contacts for easier termination
5 pole female receptacle, solder cups, black metal housing, silver contacts.
Specifications
Specifications
Capacitance between contacts: ≤ 7 pF
Contact resistance: ≤ 5 mΩ
Dielectric strength: 1,5 kVdc
Rated current per contact: 7,5 A
Rated voltage: < 50 V
Lifetime: > 1000 mating cycles
Wiresize: max. 1.0 mm²
Wiring: Solder contacts
Locking device: Latch lock
Chassis shape: D
Contact resistance: ≤ 5 mΩ
Dielectric strength: 1,5 kVdc
Rated current per contact: 7,5 A
Rated voltage: < 50 V
Lifetime: > 1000 mating cycles
Wiresize: max. 1.0 mm²
Wiring: Solder contacts
Locking device: Latch lock
Chassis shape: D
