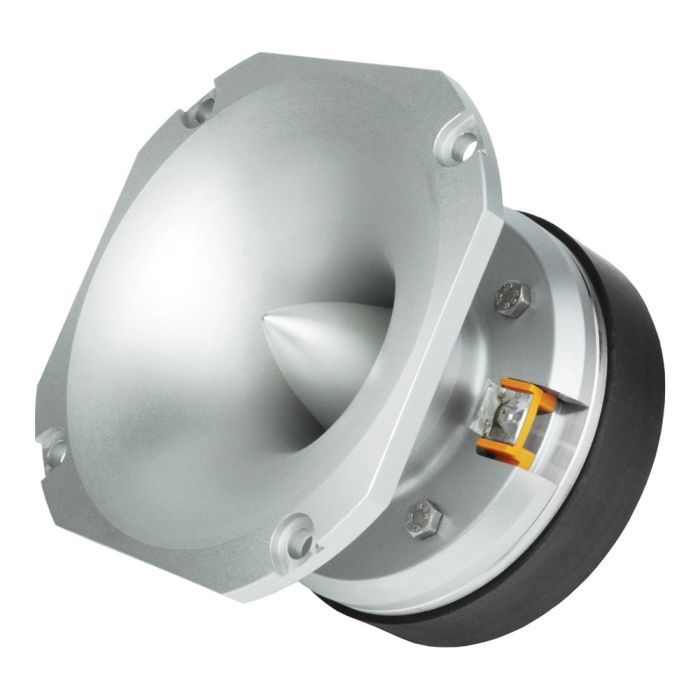

Faital Pro FD 371 A 37 mm Compression Driver 35 W 8 Ohms
Technical Parameters
Nominal Impedance
8 Ohm
Minimum Impedance
6.6 Ohm
AES Power Handling (1)
35 W
Maximum Power Handling (2)
70 W
Minimum Crossover Frequency (3)
2.6 kHz
Sensitivity (1W/1m) (4)
107 dB
Frequency Range
2.6÷20 kHz
Dispersion Angle
40°
Voice Coil Diameter
37 mm (1.46 in)
Winding Material
Al
Former Material
Kapton
Diaphragm Material
Ketone Polymer
Diaphragm Shape
Annular
Winding Depth
2.1 mm (0.08 in)
Magnetic Gap Depth
2.6 mm (0.10 in)
Flux Density
1.5 T
Magnet
Ferrite Ring
Re
5.5 Ohm
Phase Plug Design
Annular
Exit Angle
N/A
NET Air Volume filled by HF Driver
0.3 dm^3 (0.011 ft^3)
Nominal Specifications
Throat Diameter
N/A
Overall Diameter
115.2/102 mm (4.54/4.0 in)
Bolt Circle Diameter
107 mm (4.21 in)
Baffle Cutout Diameter
91 mm (3.58 in)
Depth
79 mm (3.11 in)
Flange and gasket Thickness
5.5 mm (0.22 in)
Net Weight
1.3 kg (2.8 lb)
Shipping Box (Single carton box)
150 x 123 x 102 mm (5.9 x 4.8 x 4.0 in)
Shipping Weight
1.3 kg (2.9 lb)
