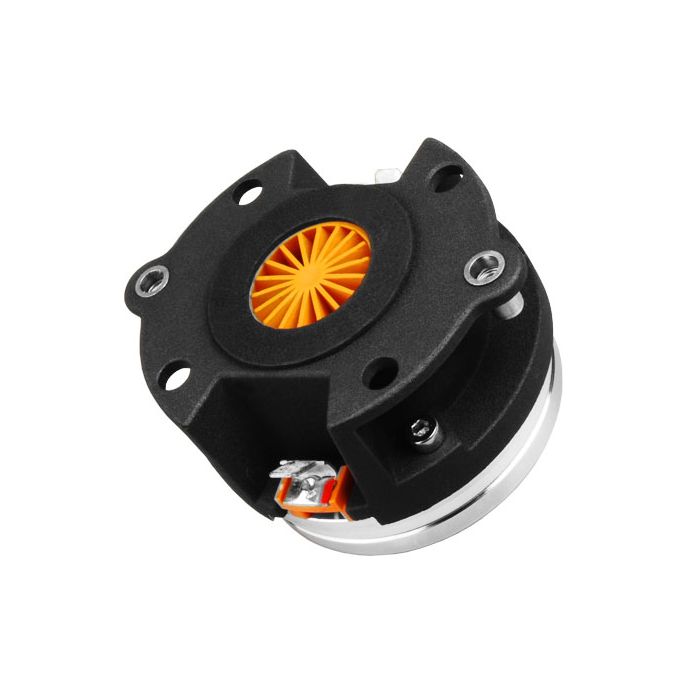

Faital Pro Compression driver HF104, 8 ohm, 1 inch 40w
Technical Parameters
Nominal Impedance
8 Ohm
Minimum Impedance
6.9 Ohm
AES Power Handling (1)
40 W
Maximum Power Handling (2)
80 W
Minimum Crossover Frequency (3)
1.7 kHz
Sensitivity (1W/1m) (4)
108 dB
Frequency Range
1.5÷20 kHz
Voice Coil Diameter
37 mm (1.46 in)
Winding Material
Al
Former Material
Kapton
Diaphragm Material
Ketone Polymer
Diaphragm Shape
Annular
Winding Depth
2.1 mm (0.08 in)
Magnetic Gap Depth
2.6 mm (0.10 in)
Flux Density
1.85 T
Magnet
Neodymium Ring
Re
5.5 Ohm
Phase Plug Design
Radial
Exit Angle (5)
Combined Exit
NET Air Volume filled by HF Driver
0.16 dm^3 (0.006 ft^3)
Nominal Specifications
Throat Diameter
25.4 mm (1 in)
Overall Diameter
91 mm (3.58 in)
180° Mounting Holes Diameter (2xM5)
76 mm (2.99 in)
Depth
51 mm (2.01 in)
Net Weight
670 g (1.5 lb)
Shipping Box (Single carton box)
98 x 90 x 64 mm (3.9 x 3.5 x 2.5 in)
Shipping Weight
700 g (1.5 lb)
