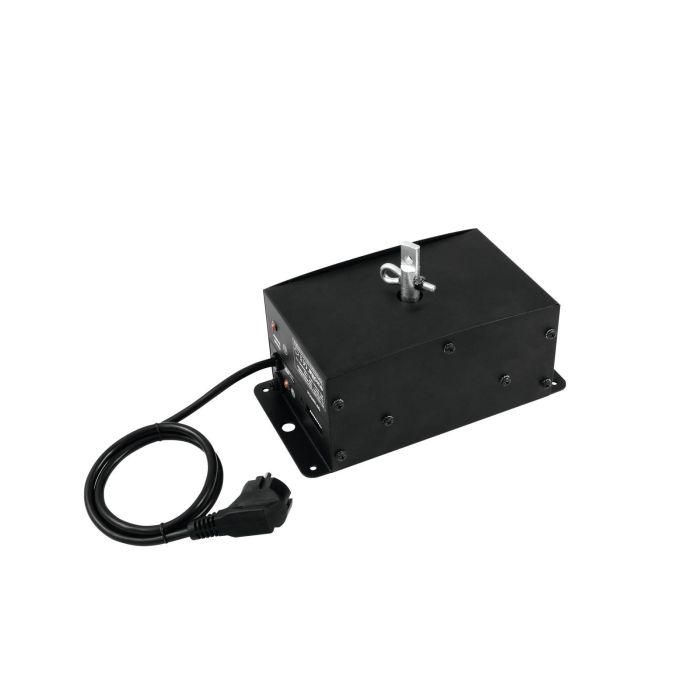

EUROLITE MD-2030 DMX Safety Rotary Motor
€ 110,34
€ 91,19
?
SKU
st50301503
EUROLITE MD-2030 DMX Safety Rotary Motor
EUROLITE MD-2030 DMX Safety Rotary Motor
DMX-controlled motor for mirror balls up to 50 cm, up to 5 RPM
Features
- Suitable for driving mirror balls up to a maximum weight of 10 kg
- This weight corresponds with a diameter of 50 cm for the EUROLITE mirror balls
- The maximum load always means the mirror ball weight including the mirror ball chain, the safety chain and the fixation material
- Operable in stand-alone mode or via DMX interface
- DMX512 control possible via any commercial DMX controller (occupies 1 channel)
- Functions: Rotation direction, Rotation speed, Master/Slave
- Programable via DIP switches
- 2 chains and 4 quick links must be ordered separately
- Ready for connection via power cord with safety-plug
- For professional use, e.g. in discotheques and in public places, the EN DIN 15560 norms have to be considered
- The motor always has to be installed with a secondary safety attachment
- Before taking into operation for the first time, the installation has to be approved by an expert
Technical specifications
| Power supply: | 230 V AC, 50 Hz |
| Maximum load BGV C1 (8-fold): | 15 kg |
| Maximum load BGV C1 (10-fold): | 12 kg |
| Maximum load BGV C1 (12-fold): | 10 kg |
| Max. diameter of mirror ball: | 50 cm (EUROLITE) |
| Rotation-speed: | up to 5 RPM |
| Dimensions (L x W x H): | 230 x 130 x 140 mm |
| Weight: | 3 kg |
| Power consumption: | 13 W |
| Maximum load: | 10 kg |
