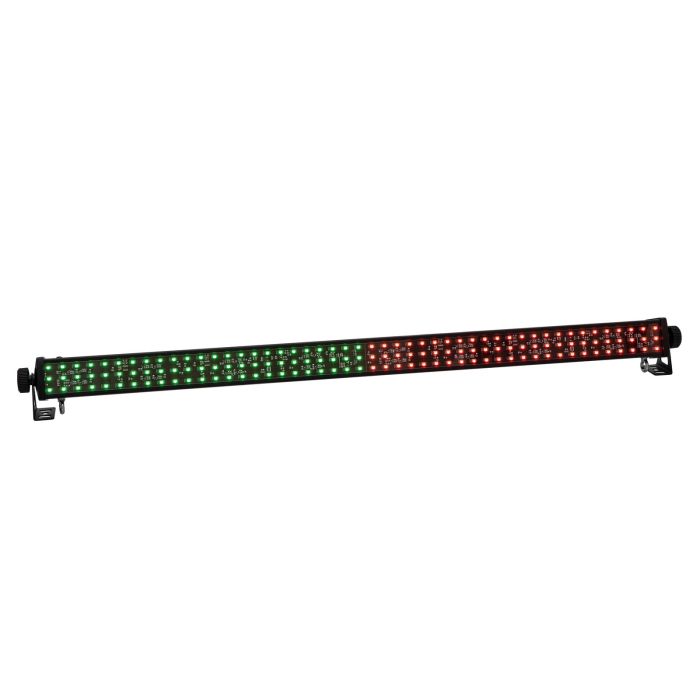

EUROLITE LED PIX-144 RGBW Bar

EUROLITE LED PIX-144 RGBW Bar

Features

LED light bar with 144 wide beam SMD LEDs in RGBW and pixel control

Additional frost filter provides a wide, soft and homogeneous light
Mains input and output for power linking up to 8 units
144 powerful LEDs SMD 5050 4in1 QCL RGBW (homogenous color mix)
8 segments separate controlling
Dimmer electronic; color blend stepless; color change adjustable; colors preset
Strobe effect
16 integrated Showprograms
Can be operated in 6; 9; 16; 30; 58 CH mode
The device is cooled by passive convection cooling
Controlling by stand-alone; Master/slave function; Sound to light via Microphone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Flicker-free
With a beam angle of 120°
With Mounting bracket
4 digits 7-segment LED display
Preprogrammed in Light Captain

Package contents

1 x light effect, 1 x user manual, 1 x power cord, 2 x mounting bracket, 2 x knurled screw, 2 x washer, 1 x diffusor cover

Technical specifications
Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 50 W
IP classification: IP20
Protection class: Protection class I
Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Power output: IEC connector (F) mounting version
Fuse: 5 x 20 mm, T 1 A Fuse replaceable
Lamp type: LED lamp
LED: 144 x SMD 5050 4in1 QCL RGBW (homogenous color mix)
Flash rate: 0 - 20 Hz
DMX channels: 6; 9; 16; 30; 58
DMX input: 3-pin XLR (M) mounting version
DMX output: 3-pin XLR (F) mounting version
Cooling: Passive convection cooling
Control: Stand-alone; Master/slave function; Sound to light via Microphone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Light Captain
Beam angle: 120°
Beam angle (1/2 peak): 120°
Housing color: Black
Attachment system: 2x Mounting bracket
Display type: 4 digits 7-segment LED display
Material: Metal
Dimensions: Length: 1,085 m
Depth: 6,5 cm
Height: 9,0 cm
Weight: 1,63 kg
