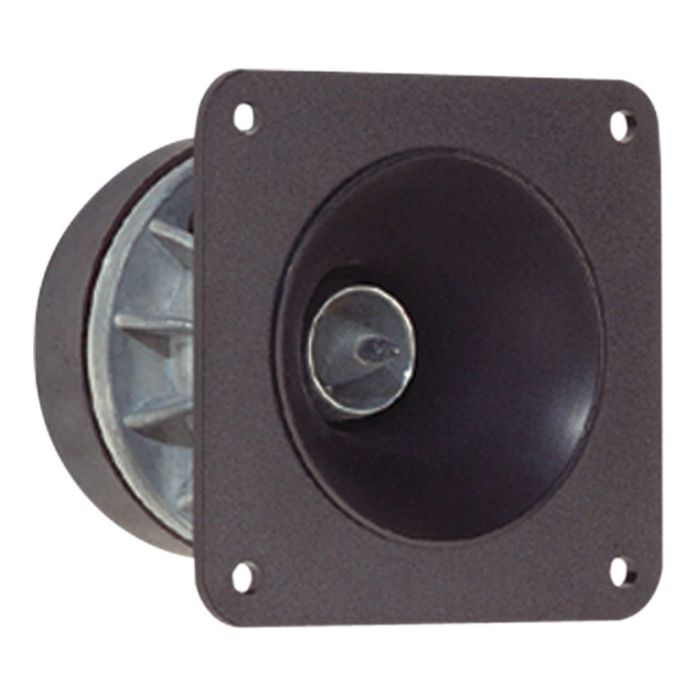

Eminence APT 80 V 2 1" HF driver with horn
€ 39,92
€ 32,99
?
SKU
EMN-EAPT80V2
Eminence APT 80 V 2 1" HF driver with horn
Eminence APT 80 V 2 1" HF driver with horn
| Specification | |
| Throat Size | 1", 25.4mm |
| Nominal Impedance* | 8Ω |
| Minimum Impedance | 7.4 ohm @ 6.1 kHz |
| Power Rating** | 35 W (AES) |
| Resonance | 2.1kHz |
| Usable Frequency Range | 3500Hz-20kHz |
| Recommended Crossover | 3.5 kHz / 12 dBkHz |
| Sensitivity*** | 104.7 |
| Magnet Material | Ferrite |
| Magnet Weight | 8oz, 0.23kg |
| Voice Coil Diameter | 1" / 25.4mm |
| Voice Coil Former | Kapton |
| Diaphragm Material | Phenolic |
| DC Resistance (Re) | 6.3Ω |
| Mounting Information | |
| Overall Diameter | 2.75", 69.8mm |
| Driver Volume Displaced | 0.004 cu.ft., 0.12 liters |
| Depth | 2.53", 64.3mm |
| Weight | 1.7 lbs, 0.8 kg |
| Mounting Thread | Use Apt Horn or Adaptor |
| Mounting Holes Diameter | N/A |
| Mounting Holes B.C.D. | N/A |
