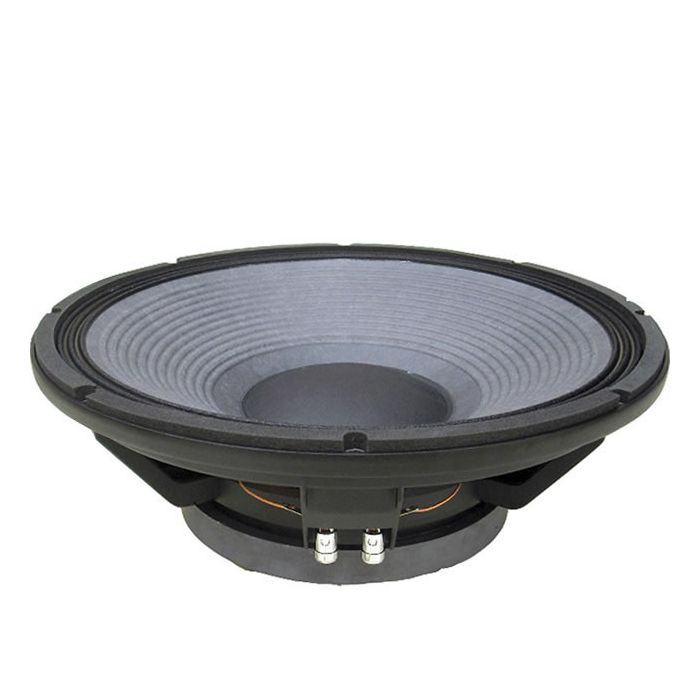

Beyma Speaker 15LX60/V2, 8 ohm, 15 inch

Beyma Speaker 15LX60/V2, 8 ohm, 15 inch

High power handling: 700 w AES
High sensitivity: 98 dB
FEA optimized magnetic circuit
Designed with MMSS technology for high control, linearity and low harmonic distortion
CONEX spider for higher resistance and consistency
Waterproof treatment for both sides of the cone
4" DUO double layer inner/outer voice coil
Extended controlled displacement: Xmax ± 9 mm
Massive mechanical displacement capability: Xdamage ± 58mm

General
Product type Cone driver
Brand Beyma
Reference 15LX60-V2
Product code 115LX60V28
Informations
Nominal impedance 8 ohm
Dimensional category 15.5 inch
Frequency coverage type Sub, Low, Midbass
Manufacturer sensitivity 98 dB
Calculated sensitivity 94.22 dB
Nominal power handling 700 W
Bandwidth 30÷1500 Hz
Fundamental parameters
Mms 147 gr
Le 2.1 mH
Re 5.1 ohm
Small signal parameters
Fs 42 Hz
Qes 0.45
Qms 21.23
Qts 0.44
Vas 105 L
