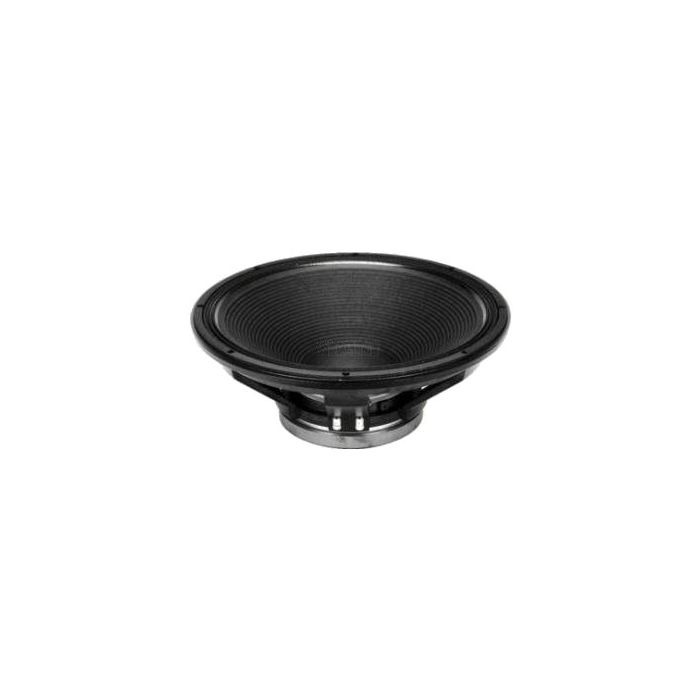

Beyma 18G40 woofer

Beyma 18G40
Low freq. 18" 700W 97dB speaker

This low frequency transducer is specially intended for the most demanding applications. Its design concept arises from the need of achieve a more resistant loudspeaker that matches the more and more power given by ultimate amplification systems. In order to accomplish that, almost every component of the speaker has been reconsidered: its voice coil has the benefits of an improved manufacturing process, made with the highest quality materials and the diaphragm has been carefully developed to give an extremely flat, smooth response. These characteristics make its integration in compact systems covering the low frequency range a straightforward task. Moreover, its parameters has been optimized to obtain an excellent bass response when used in small bass-reflex cabinets.

Key Features

    * High power handling (700 w AES)
    * Waterproof paper cone
    * 4" edgewound copper voice-coil with polyamide fiber glass former
    * Optimum winding length for increased linear excursion
    * Spiders of  improved temperature behaviour: retain good mechanical properties at high power
    * Designed for woofer applications

Technical Specifications
Nominal diameter    460 mm. 18 in.
Rated impedance     8 ohms.
Minimum impedance    7 ohms.
Power capacity    700 w AES
Program power    1400 w
Sensitivity    97 dB 2.83v @ 1m @ 2pi
